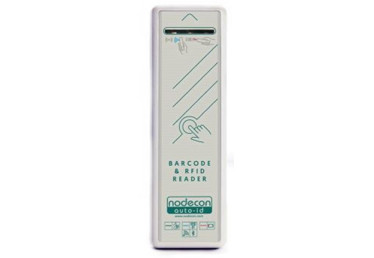

Barcode/RFID Reader

RDR klein

Reader (with barcode reading as well as RFID-description and reading)

  • No mechanically moving parts
  • Chemical and water resistant
  • Standard AA batteries (average life with normal use> 1 year)
  • Realtimeclock for timestamp
  • Internal flash memory - no data loss
  • CE certification

Technical specifications

CPU

  • low power Microcontroller

Memory

  • Flash memory for program and data

Bluetooth

  • Short Range Bluetooth Module for data transfer and software update

Batterie

  • 2xAA standard battery and backup battery for RTC

Keyboard

  • membrane keyboard

Status LED’s

  • Blue, green and red status LEDs

Buzzer/Vibrator

  • Buzzer / vibrator for haptic feedback

Barcode

  • Barcode CCD
  • Engine reads (from paper or LCD monitors):

EAN-13, EAN-8, UPCE,Code 39 / Code 32,CODABAR,Matrix 2 OF 5,Industrial 2 OF 5 / IATA,Interleaved 2 OF 5
Code 128 / Code 93 /Code 11,MSI-PRESSLEY,RFID,13,56 MHz

Dimensions

  • 138x45x28mm

Weight

  • 160g (incl. battery)

Download: Product Sheet Barcode-Reader
