Time-Tracker/Data-Station

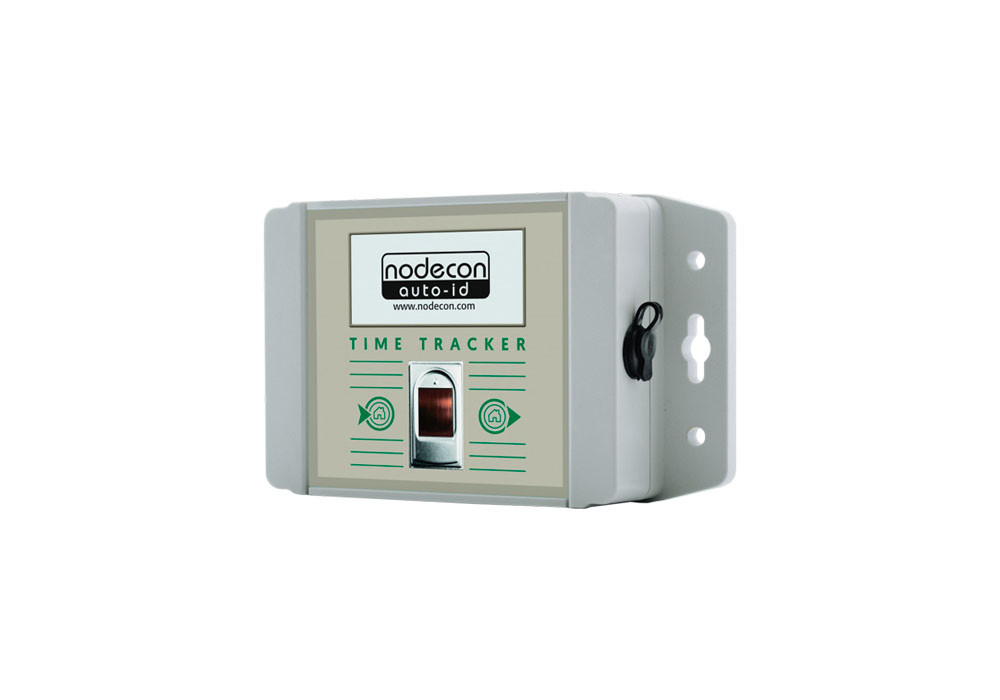

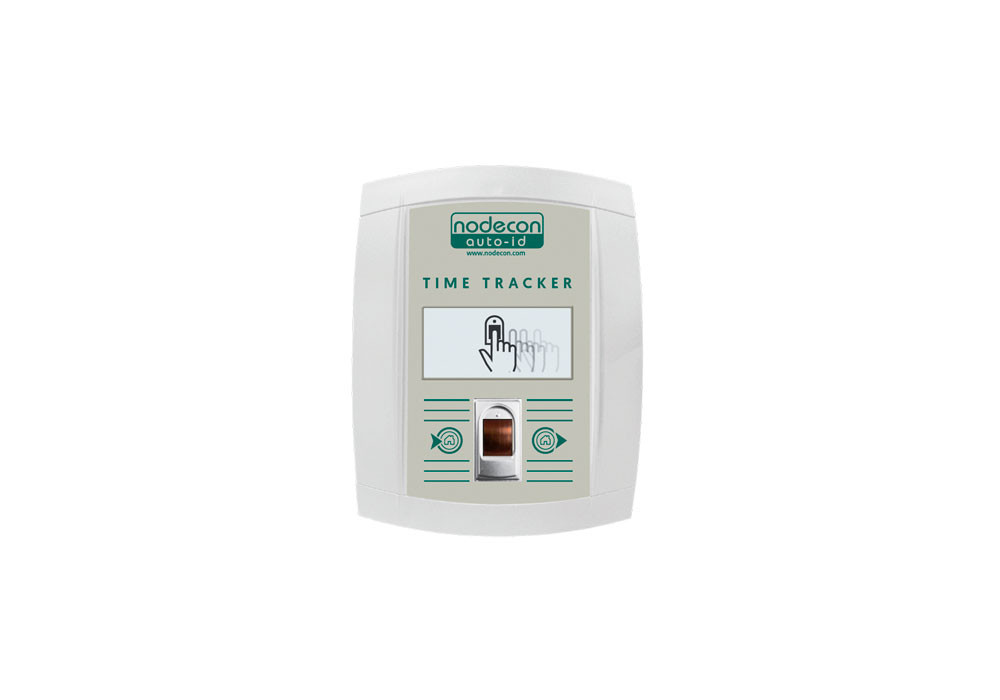

Time Tracker

Stand-alone terminal for recording time / performance data. People can log in / out directly at the terminal. Also serves as a gateway between Barcode/RFID Reader and the cloud. Bluetooth module for receiving data from the reader and sending updates.

  • Optional RFID reader for time recording "Come / Go"
  • Optionally with fingerprint
  • Optionally with display
  • Backup battery in case of power failure
  • Easy installation (power plug)

Technical specifications

CPU

  • low power Microcontroller

Memory

  • Micro-SD

Bluetooth

  • Short range Bluetooth Modul with SPP for data transfer and software update

GSM / GPRS

  • 2G /LTE
  • TCP/IP stack
  • FTP stack

Power

  • 9V 1000mA DC Adapter
  • Internal LiPol
  • Internal lithium for RTC

Status LED’s

  • Blue, green and red status LEDs

Antenna

  • Internal or external

RFID

  • 13,56 MHz RFID reader and writer. Reads different Mifare derivatives

Dimensions

  • 118x65x40mm, mounting plate 145x65mm

Weight

  • 160g

Data Transmission

  • Data transmission takes place over the mobile network (GSM / GPRS / LTE).

Different versions available

  • Outdoor Version (Rugged Design - IP68)
  • Indoor Version (Modern Design)

Download: Productsheet Data-Station/Time-Tracker
